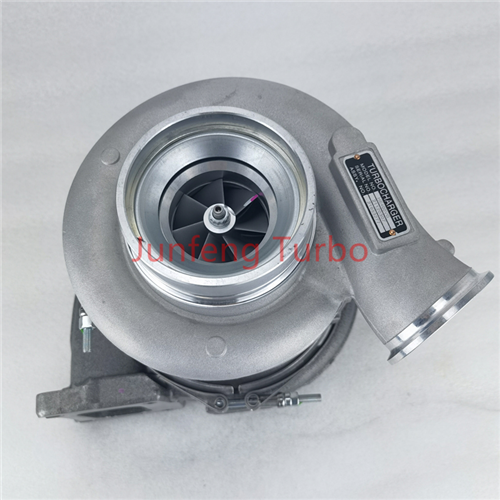

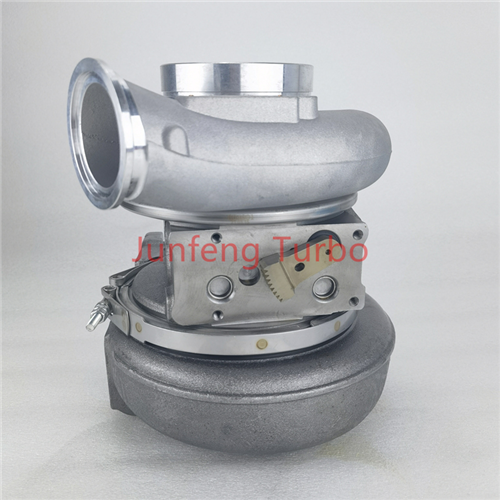

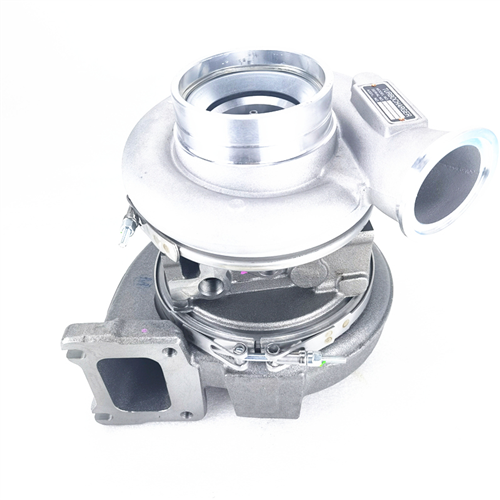

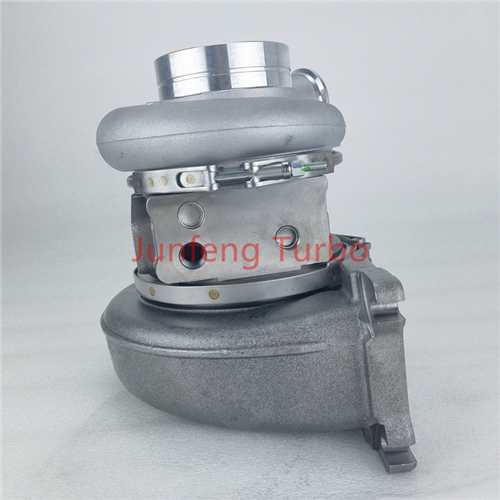

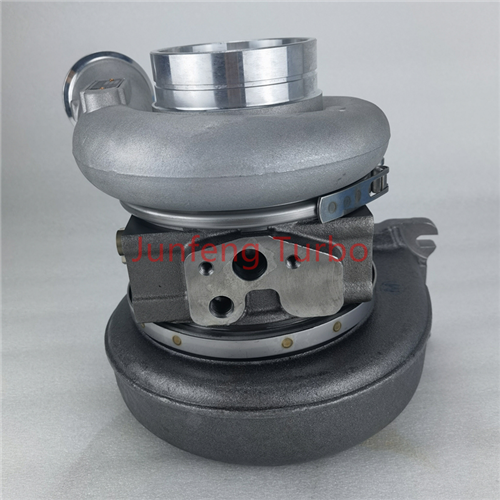

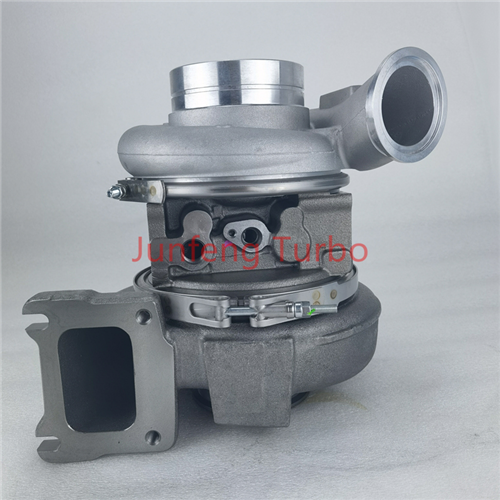

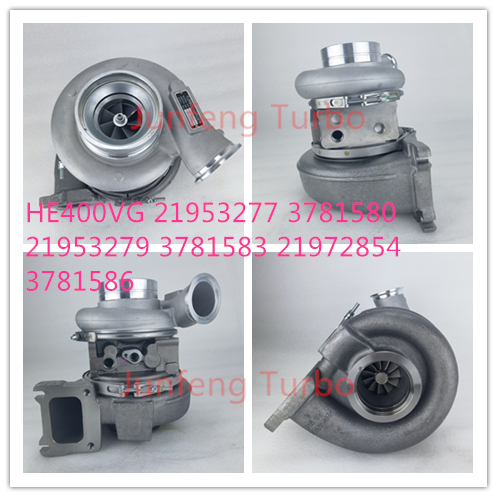

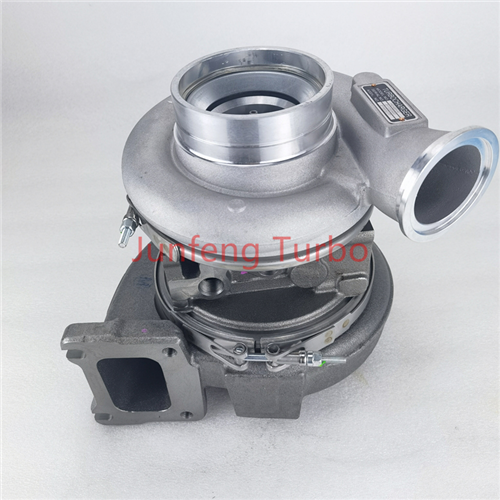

HE400VG 22014296 22883059 21953277 3776805 Turbocharger for Volvo Mack Truck MD11 US07 engine 21953277 3776805 Turbocharger for Volvo Mack Truck MD11 US07 engine

HE400VG 21953277
Turbo Model HE400VG HE431VE
Part Number 21953277 3781580 21953279 3781583 21972854 3781586
Previous Version : 4031239, 40312NX, 40312RX, 40313HX, 4046514, 4046515, 4046516, 4046517, 4046518, 4047365, 4047366, 4047367
OEM Customer Number: 2840777, 2840779, 3769170, 3769171, 3769180, 3769181, 3769182, 3769182RX, 3773434, 3773435, 3776801, 3791468
OEM Supplied Number : 21080079, 21080080, 21178032, 21178033, 21178034, 21424404, 21424405, 21424406, 21424419, 21592749, 21592750, 21592751
Manufacturer Part Number: 4031003, 5328825, 5328826, 5353325, 5353326, 5355445, 5355446, 5355450, 5355451, 5355452, 5451879, 85003608,
Application : turbo used for Volvo, Mack Truck, Mack Volvo D11F 325 HP Mack MP8 405 HP
Year : 2006-12
CHRA: 4034328 (4034328H)
Engine: MD11 US07

Product Detail

1
Part Number	3776805
Previous Version	2835095, 2840775, 3769171, 3773435, 4031002, 403100200, 403100200H, 4031002H, 4031002HX, 4031003, 403100300, 4031003H, 4031205, 403120500H, 4031205H, 4031205HX, 4031239, 40312NX, 40312RX, 40313HX, 4046514, 4046515, 4046516, 4046517, 4046518, 4047365, 4047366, 4047367, 4047368, 4047369, 4048068, 4048069
OEM Customer Number	2835093, 2835094, 2835095, 2835096, 2835097, 2840771, 2840773, 2840775, 2840777, 2840779, 3769170, 3769171, 3769180, 3769181, 3769182, 3769182RX, 3773434, 3773435, 3776801, 3791468, 3791469, 3791493, 3791494, 3791495
OEM Supplied Number	20941931, 20941933, 21012875, 21012876, 21012877, 21080078, 21080079, 21080080, 21178032, 21178033, 21178034, 21424404, 21424405, 21424406, 21424419, 21592749, 21592750, 21592751, 21597914, 22014294, 22014295, 22014296, 22883059, 22883060
Year	2006-12
Description	turbocharger used for Volvo, Mack Truck, Mack Volvo D11F 325 HP Mack MP8 405 HP
Manufacturer Part Number	4031003, 5328825, 5328826, 5353325, 5353326, 5355445, 5355446, 5355450, 5355451, 5355452, 5451879, 85003608, 85013027, 85013028, 85013029, 85013053, 85021420, 85110393, 85115989, 85115990, 85115991, 85123286, 85123288, 85123290, 85136170, 85136171, 85136180, 85151099, 85213710
CHRA	4034328 (4034328H) NEW IN STOCK
Turbo Model	HE400VG, HE431VE
Engine	MD11 US07
Displacement	13.0L, 1300 ccm
Fuel	Diesel
KW	325/440 HP
Angle α (compressor housing	127/234°
Angle β (turbine housing)	166/173°
Service Kit	(Major)(1154400755) $120.81 NEW IN STOCK
Nozzle Ring Assembly	IN STOCK
Turbine Housing AR	VGT
Actuator (Electronic)	4034114 (21517180, 21754439, 28084716, 28209382, 2837207, 3780595, 3783399, 3787586, 3787591, 3789659, 3789659H, 3789662, 4032170, 4032798, 403411400, 4034114H, 4047112, 5359093, 535909300, 535909300H, 5359093H, 599-5002, 5995002, 85013730, 85013731)(12 Volts)
Gasket Kit	4032585
Gasket (oil inlet)	5264570 (3899343, 4938639)
Gasket (turbine inlet)	3755843
NOTE	Without Actuato
