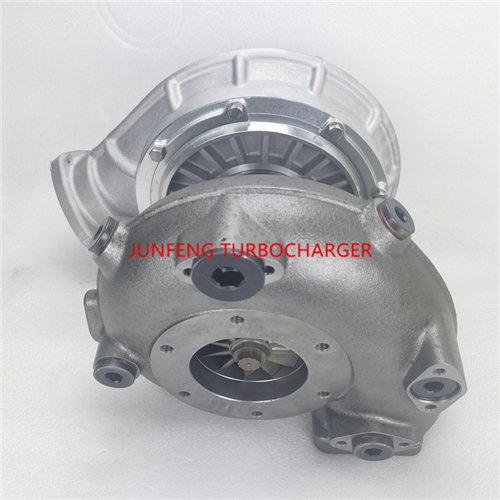

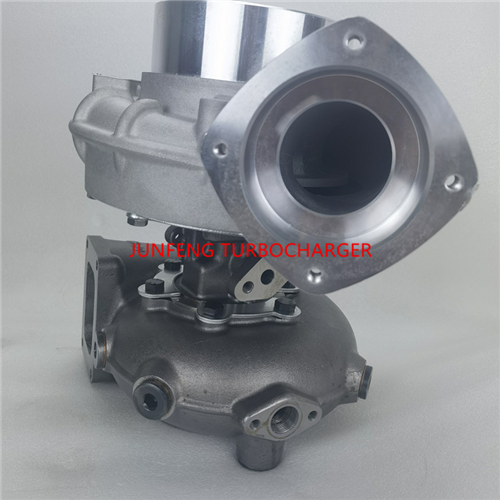

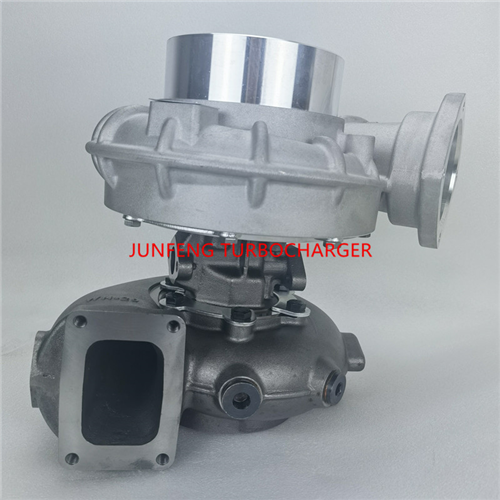

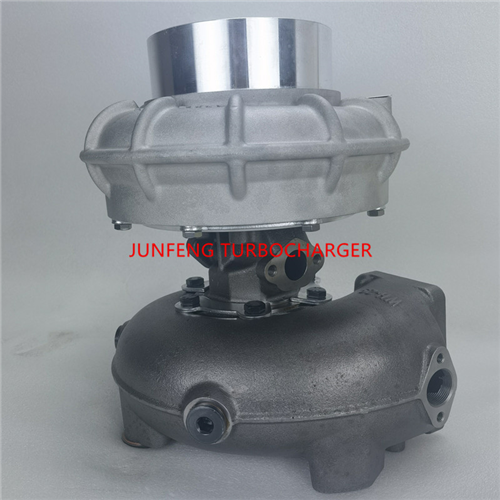

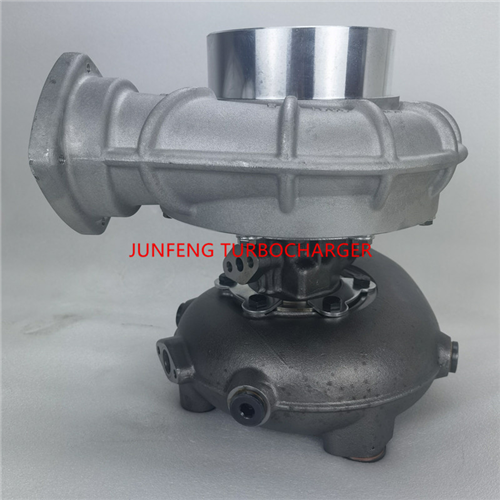

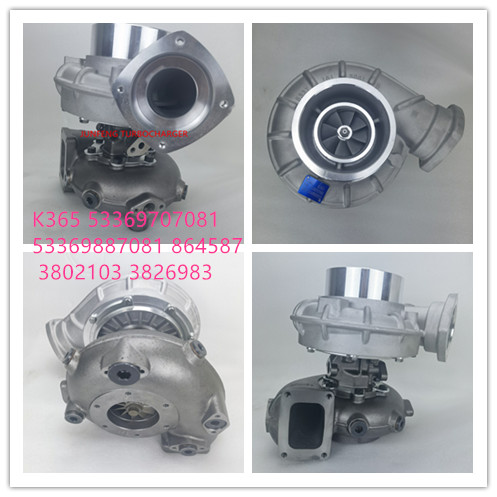

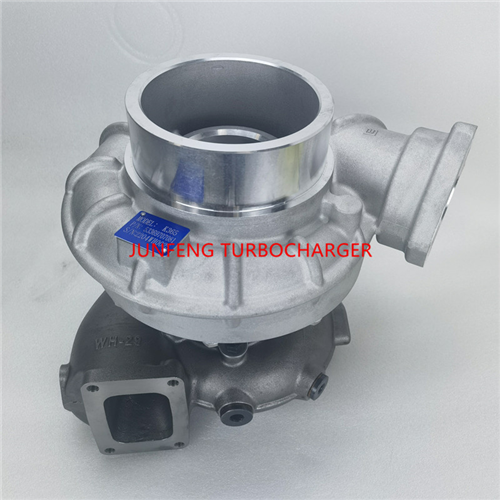

K365 53369707081 53369887081 53369707080 3802103 3826983 turbocharger for Volvo Penta Marine 16.12L TAMD163P-A Engine

Product Detail

Turbo Details

Part Number	53369887081
Previous Part Number	5336-988-7081, 5336 988 7081, 53369887080
OE number	864587, 3802103, 3826983
Manufacturer Part Number	53369707081, 53369707080, 5336-970-7081, 5336-970-7080
CHRA	53367100070 (5336-710-0070)
Turbo Model	K365-4770MNCKB27.72GBDYB, K365-4770MNCFD27.72GBDMB
Engine	TAMD165P, TAMD163P-A, TAMD165P-A, TAMD163
Displacement	16.12L, 16120 ccm
KW	552/751
RPM	2100
Angle α (compressor housing)	315°
Angle β (turbine housing)	90°
Bearing Housing	53361500004
Turbine Wheel	53361205002 (3825725)
Comp. Wheel	53371232022 (3825726)
Back plate	53371515708
Heat shield Number	53361652003
Repair Kit	53367110024/53367110006 (863765)
Turbine Housing (water-cooled)	53361006436
Compressor Cover	53371003001
Turbine Housing AR	27
Gasket (Turbine Inlet)	20784537
Gasket (Oil Inlet)	420641
Gasket (Oil Outlet)	543360
Gasket (Water line)	862637
NOTE	Inter cooler, Replacement for K36-7080
Fuel	Diesel
