Product Detail
Product Description
| Part Number | 3795958 |
| Previous Version | 3598489, 3599142, 3599395, 3599397, 3599398, 3599399, 3599400, 3599515, 3795960, 3795961, 3795961H, 3795961HX, 3795962, 3795964, 3795965 |
| OE Number | 4089312, 4089312NX, 4089312RX, 4089373, 4089373NX, 4089373RX, 4089698, 4089698NX, 4089698RX, 4089945, 408994500, 408994500HX, 4089945H, 4089945HX, 4089945NX, 4089945RX, 4089947, 4089947NX, 4089947RX, 4955165, 4955165NX, 4955165RX, 4955166, 4955166NX, 4955166RX, 4955167, 4955167NX, 4955167RX |
| Year | 2004-09 |
| Description | Truck, Dodge Cab & Chassis Trucks |
| Turbo Model | HE341VE, HE300VG |
| CHRA | N/A |
| Manufacturer Part Number | 4035155, 4036432, 4036446, 4036448, 4036449, 4036450, 4036451, 4036453, 4037273, 4037276, 4037278, 4037279, 4037280, 4037281, 4037283, 4039799, 4039802, 4039804, 4039805, 4039806, 4039807, 4039809, 4040622, 4041619, 4041620, 4041621, 4041622, 4041623, 4041624, 4041625 |
| Engine | ISB, QSB, ISL, QSL, ISB02, ECHO LMRO, B Series |
| Displacement | 5.9L, 6.7L |
| Fuel | Diesel |
| Angle α (compressor housing) | 230/330° |
| Angle β (turbine housing) | 180° |
| Bearing Housing | (Water Cooled) |
| Turbine Wheel | (Ind. 59.15 mm, Exd. 66.5 mm, 11 Blades) |
| Comp. Wheel | 3599648 (3599648H)(Ind. 53.7 mm, Exd. 77.98 mm, 7+7 Blades, Superback) |
| Back plate | 3595189 |
| Repair Kit | 4027309 (1152301750) |
| Turbine Housing AR | VGT |
| Electronic Actuator | 4031337 (3598564, 403133700, 403133700H, 403133700HX, 4031337H, 4031337HX, 4031337NX, 4037832, 4039360, 4039360H) |
| Gasket Kit | 3545575 (1900100057) |
| Manufacturer | booshiwheel |

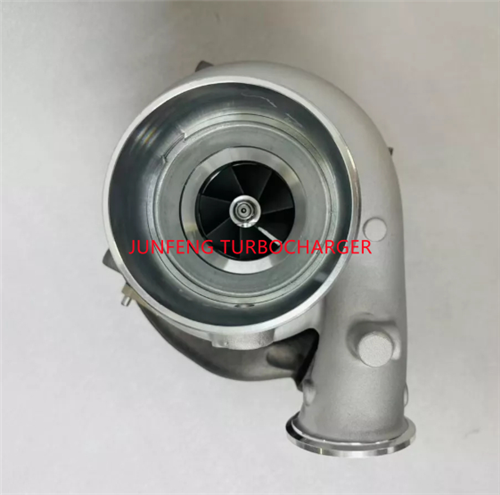

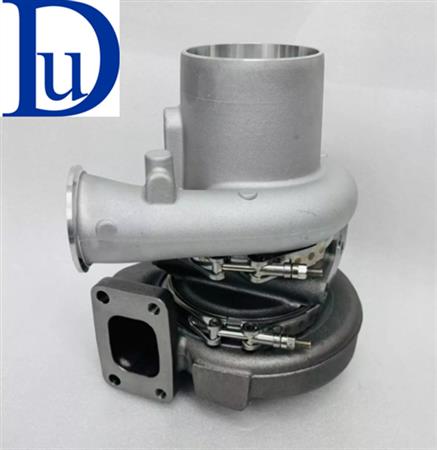

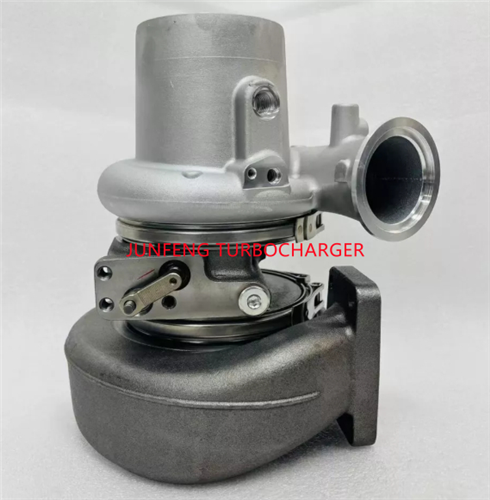

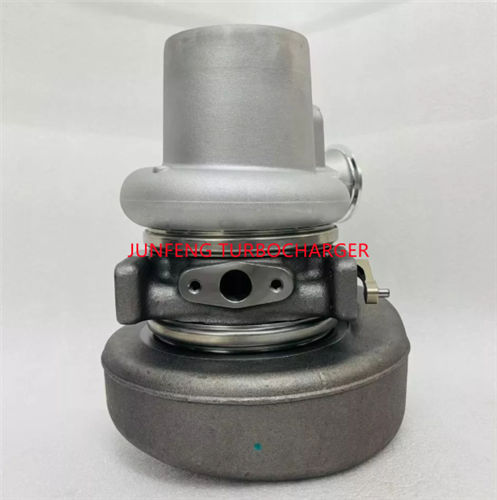

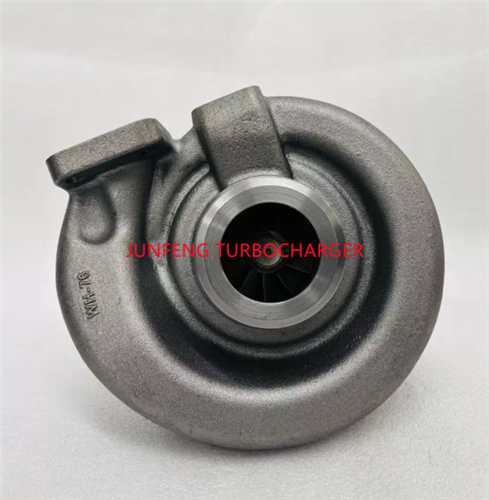

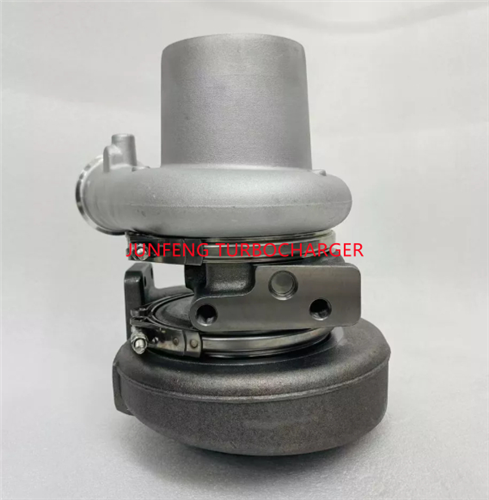

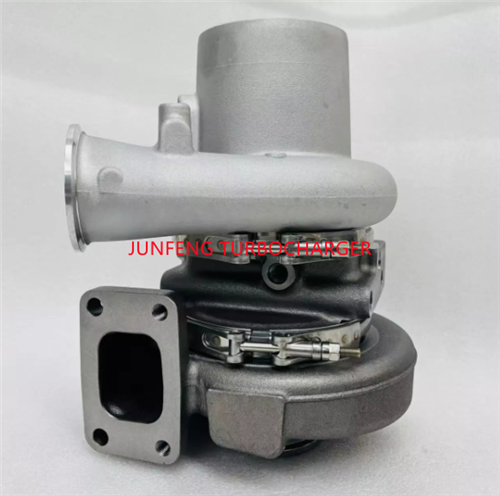

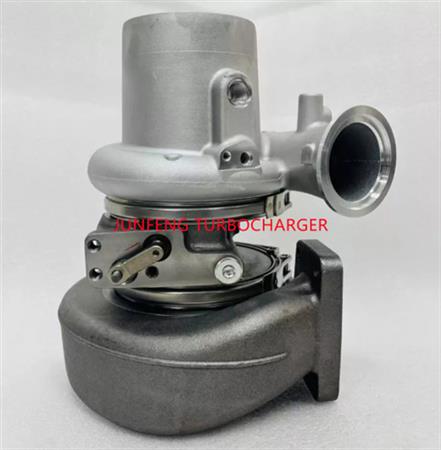

turbocharger fits for 2004-09 Cummins Truck with ISB Engine
